BathStellarMall Shower Doors for Walls That Were Never Square

Chrome, matte black, and brushed gold. No brushed nickel or oil-rubbed bronze. Settle swing direction and opening width first; the finish is the only cosmetic call.

The manufacturer figure is up to 90% less scrub time versus untreated glass. The mechanism is straightforward: a protective glass coating fills the microscopic pores where hard-water minerals normally lodge and etch. It works alongside maintenance rather than instead of it, and a squeegee pass after each shower keeps that figure realistic.

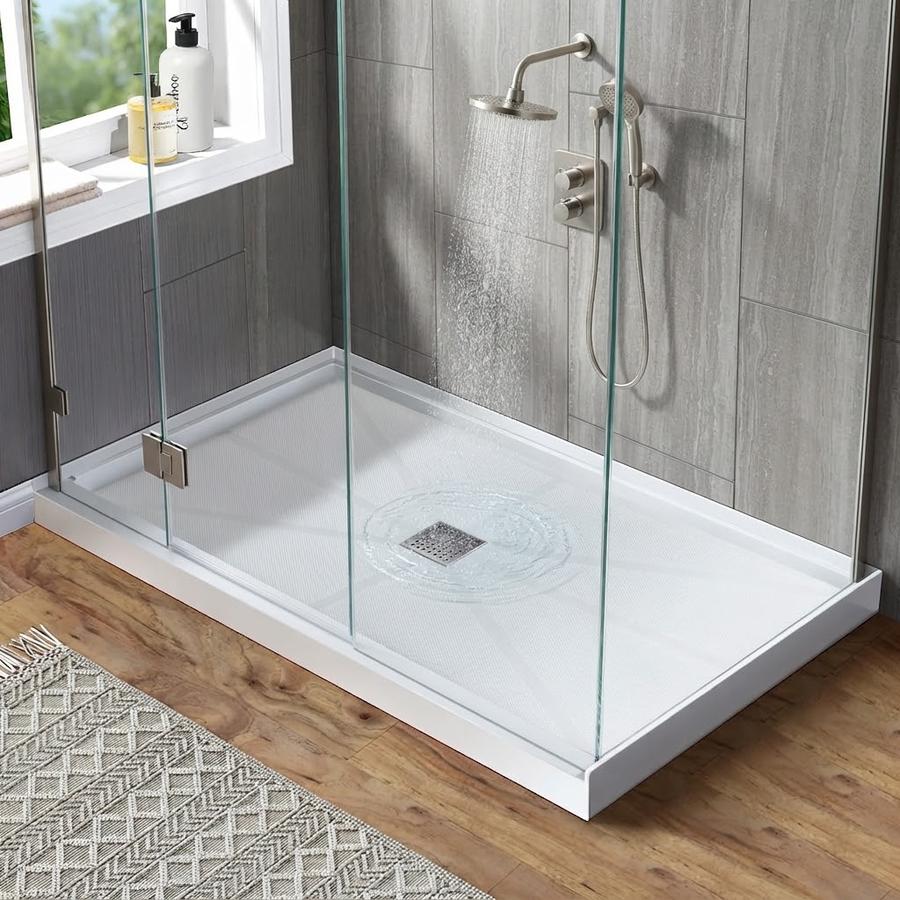

Two footprints: a 48-by-32 center-drain base and a curbless pan at 60 by 32, both SMC. Hand measurement carries a 1-2 cm variance, so tape the delivered pan.

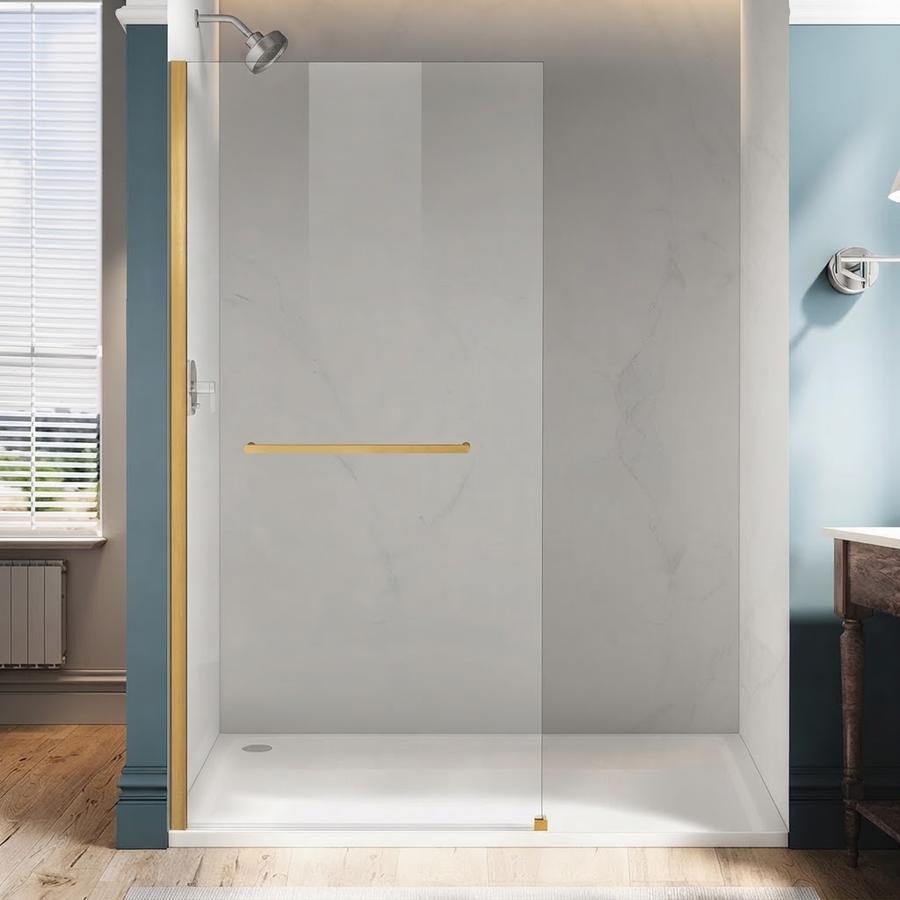

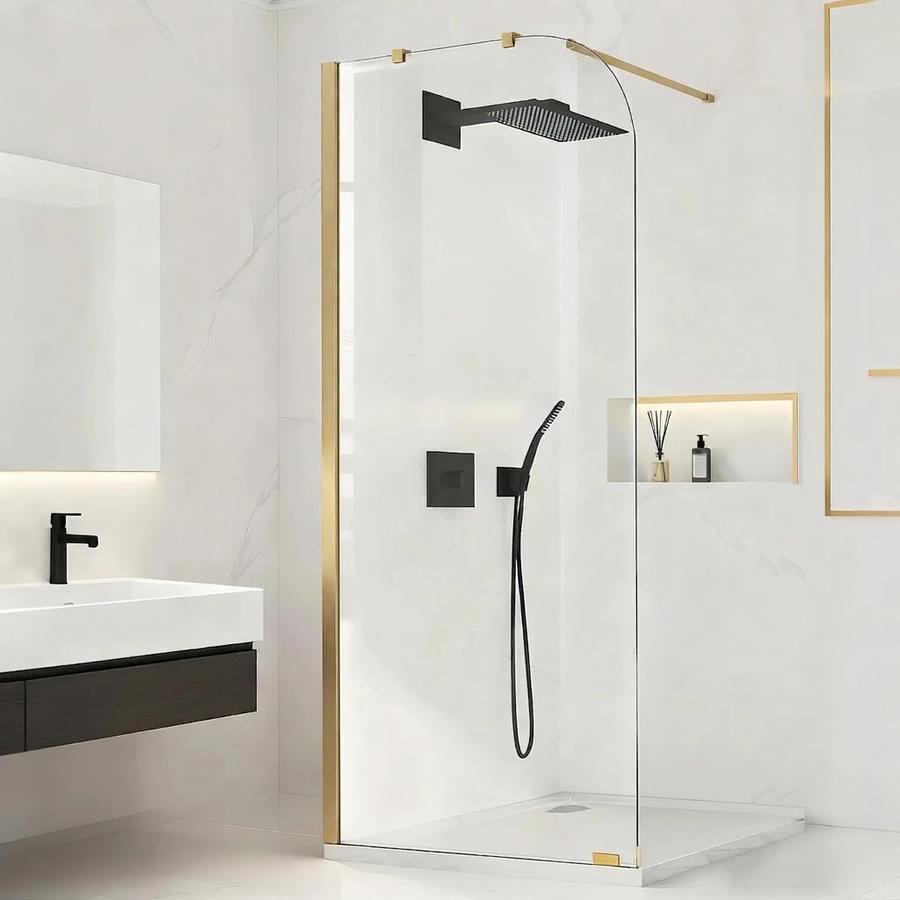

The brushed gold 10mm fixed panel carries an integrated towel bar just under 20 inches, mounted to the frame rather than the glass. No separate wall anchor needed.

The center-drain base runs about 50 pounds, the curbless pan about 43. Both are a two-person carry in practice, since the shell flexes if you lift from one edge.

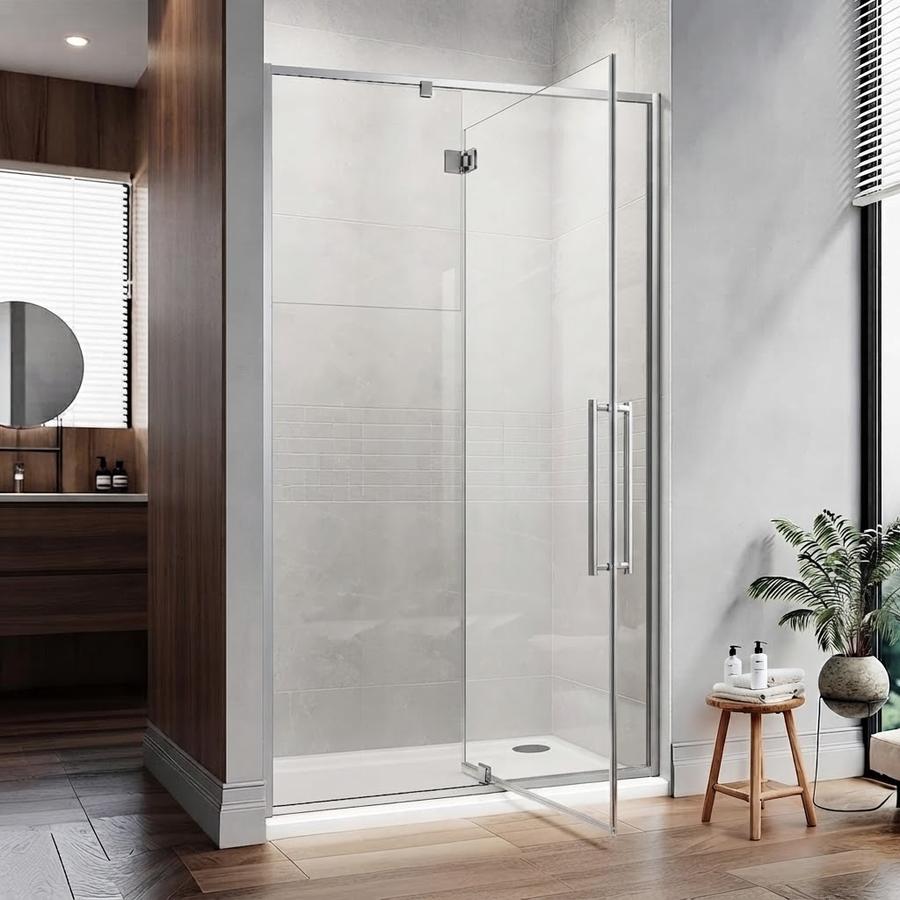

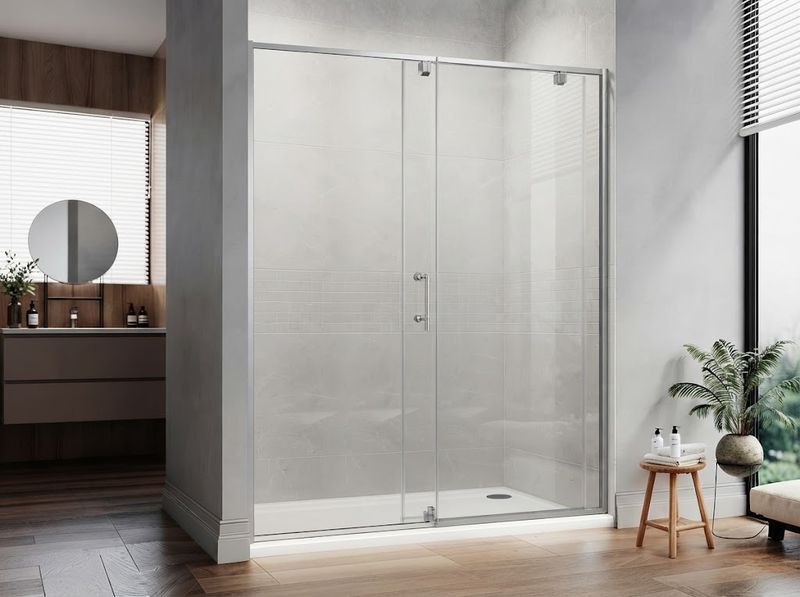

On the pivot doors, wall-mounted hinges anchored through tile into studs, plus a handle-side magnetic strip that pulls the door shut. On the fixed screens, an aluminum channel down one side and a fixed clamp at the bottom edge. Silicone seals the joints; it carries no structural load.

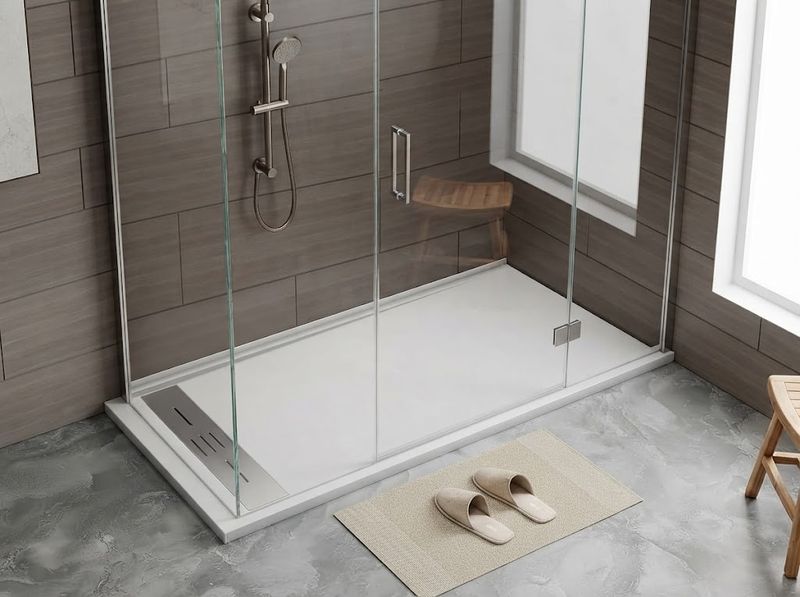

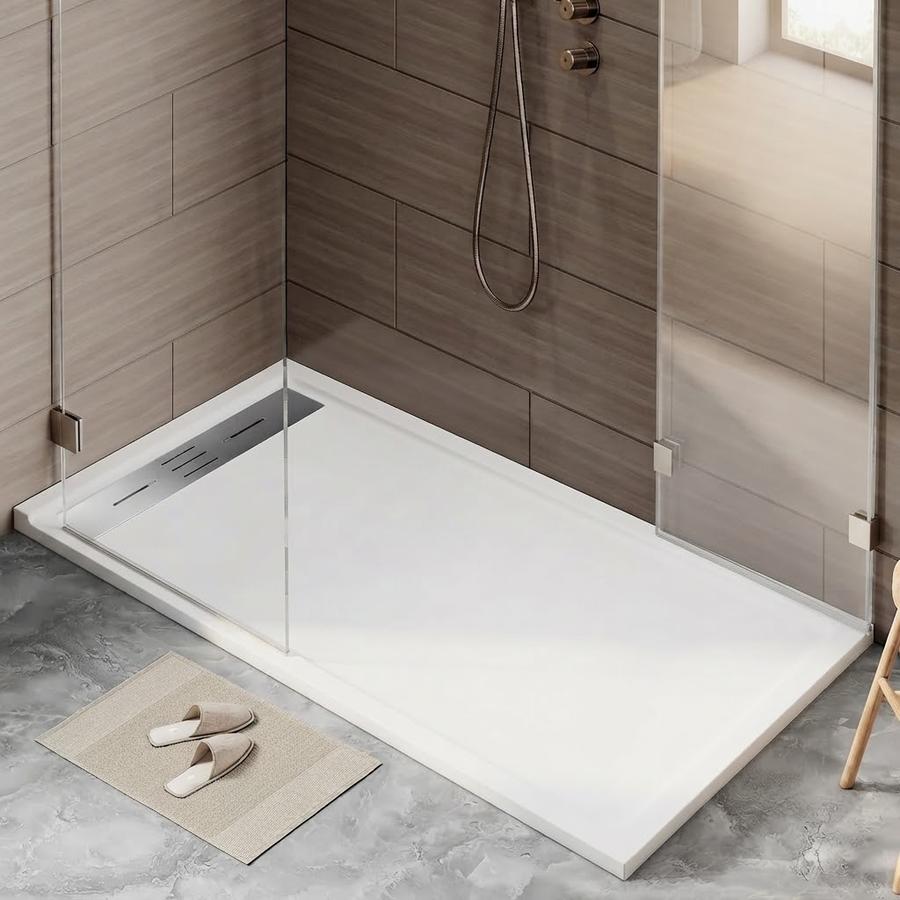

The center-drain base has a fixed outlet in the middle. The curbless pan reverses left or right, which covers most off-center rough-ins without moving pipe. The center-drain base ships with a PVC short pipe and a 304 stainless cover; the curbless pan includes the stainless cover but not the pipe.

None of these doors uses shower door headers and support bars. The pivot doors carry their load on wall-mounted hinges into studs, and the fixed screens on a full-length side frame. Leaving the top open also lets steam escape, which keeps mold from building where a header would trap it.

Necessary, no. Useful, yes, especially on hard water. Four of the glass doors here ship with a factory nano-coating that keeps minerals from bonding to the pane. Aftermarket coatings exist but wear off in months. Either way, a squeegee does more work than the coating does.

What exists is a damage policy rather than a warranty term. Delivery damage runs under 0.5% of shipments, and a panel that arrives cracked gets fast replacement or refund. Nothing is published as a formal warranty duration, and inventing one would be dishonest. Photograph the crate before you sign, since that is the strongest evidence you'll have.

Document it before signing for delivery. Photograph the crate, the corners, and every glass edge. A panel that arrives broken is replaced or refunded quickly under the stated damage policy. Damage found after installation is a different conversation, which is why the driveway inspection matters more than any paperwork.

The manufacturer states plainly in its own bullets that pan dimensions are measured by hand, with a possible 1-2 cm discrepancy. One owner roughed in plumbing against a diagram showing a wider pan and received the narrower width the title states. Measure the delivered unit before anyone cuts concrete.

The earliest shipment dates on these products run to June 2025, which makes the track record short: roughly a year of buyer feedback rather than a decade. The 4.7-star average across 72 verified reviews reflects that sample size. Weigh it as a year of data, not an established reputation.

The 72 ratings behind the 4.7-star average are verified buyer reviews left after purchase, not solicited testimonials. Per-model scores range from 4.2 to 5.0, and the lower ones sit on doors with only a handful of ratings. Read the individual model page before treating the pooled number as the whole story.

Through the product listings linked on this site. Pricing moves, so any figure printed on a page like this one would be wrong within a week. Check today's price on the model you're considering. These sit between entry-level and mid-tier for residential glass enclosures.

Only ANSI and/or SGCC certification is confirmed in the product documentation, so that is all we claim. CPSC 16 CFR 1201 is a separate federal safety-glazing standard some manufacturers cite. If your inspector requires that specific citation, ask before ordering rather than assuming the standards overlap.

The pans use a slate-textured, slip-grip surface described by the manufacturer as slip-resistant. No DCOF or ADA-style rating number is published, and putting one in writing here would be fabrication. If a rated coefficient is a requirement for your build, treat this as unverified and specify a pan that publishes the figure.

Aluminum doesn't rust, and the anodized frames here resist discoloration. The parts worth watching are the fasteners behind the frame, which is why 304 stainless handles, clamps, and drain covers matter. Wipe the frame base after showers, since standing water at the sill ages a finish faster than steam does.

The glass is, once it's anchored properly. The bigger accessibility variable is the floor. A standard base puts a four-inch flange and curb in the doorway; the curbless pan drops that to about an inch, or to a flush transition when recessed. Pair it with a door that swings outward for rescue access.

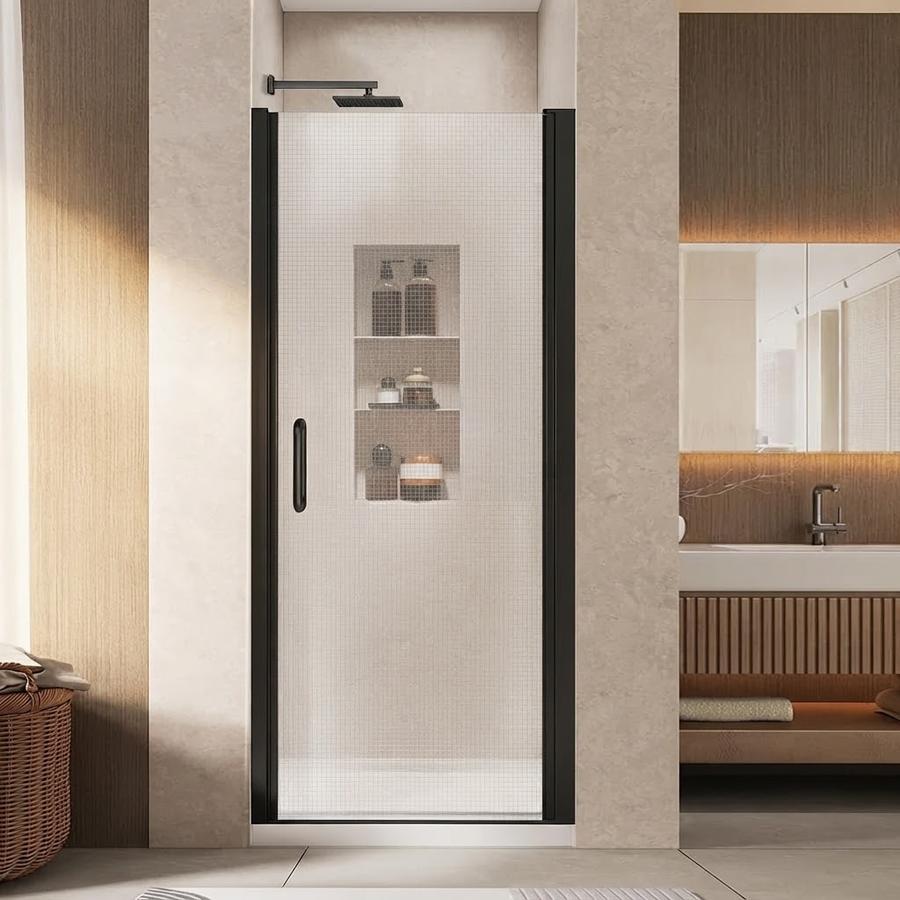

Measure the swing radius from the hinge, not from the opening edge. The frameless pivot doors swing 180 degrees in and out, so you can set them to open inward where a vanity or toilet sits close. That in-and-out range is the single feature that saves a cramped layout.

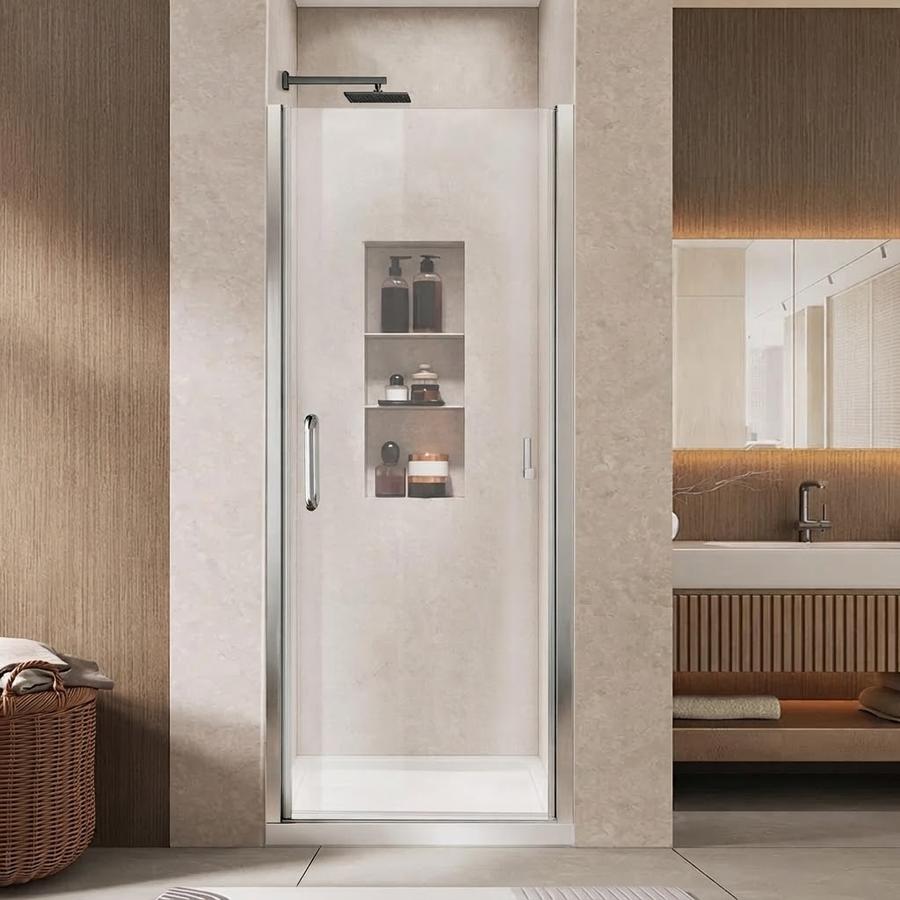

A pivot works in a tight layout when it swings both ways. A one-direction swing needs clear floor outside the shower, so a vanity or toilet within the arc kills it. An in-and-out pivot lets the wet face drip back into the pan instead of onto the mat, and it needs no track on the floor to collect scum. The compact doors here start at a 30-inch opening and adjust to 31.5, which fits alcoves where a wider door has nowhere to travel.

It reduces splash; nothing eliminates it. A high-strength magnetic strip aligns the door and closes against dual waterproof strips, and a bottom seal handles the floor line. Performance still depends on seal placement, wall condition, and whether the showerhead aims at the door. Aim it at tile instead.

Curbless ones, without exception. A step-over curb is the thing that ends independent showering, and the 60-inch curbless floor gives a shower chair room to turn. Recess it into the subfloor for a flush transition and a walker crosses without lifting a wheel.

There's a lip unless you recess it. Sitting on the subfloor, the pan stands about an inch, which is low but not flush. Recessed into the subfloor, it drops to a thin transition strip. That prep work is the difference between low-threshold and genuinely curbless, and it happens before the pan arrives.

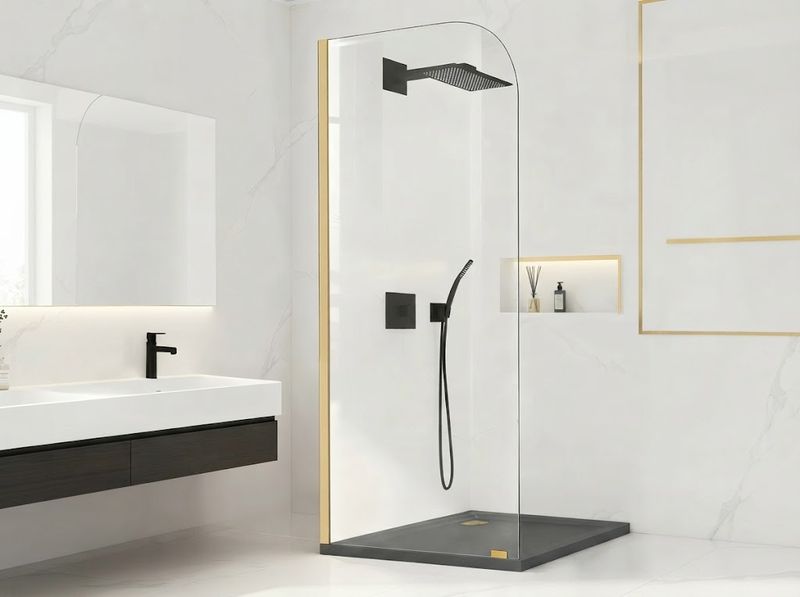

A rainfall head throws water down rather than sideways, so a single fixed screen handles that setup with far less overspray than a wall-mounted head aimed across the space. With a standard head, expect mist past the panel edge and choose floor material accordingly.

Some owners do, usually for privacy in a shared bath or to catch spray at the open edge of a walk-in panel. It works fine. Mount the rod to the wall rather than the glass, since the panel's clamps and frame are sized for the glass load and nothing more.

Different trade-offs. A sliding shower door stays inside the shower footprint, which suits a cramped bath, but its bottom track collects soap scum and mold. A frameless pivot needs swing clearance and leaves nothing to scrub but flat glass. There are no sliding models here; every door swings or is fixed.

Start with floor clearance. If a vanity or toilet sits inside the swing radius and the door only opens one way, a slider wins. With clearance, or with a pivot that swings both directions, the pivot wins twice: there is no bottom track collecting soap scum, and a telescopic track absorbs an out-of-square opening that a slider cannot. A slider's rail has to sit dead level, so a wall that runs a half-inch out over 74 inches of height turns into a binding door.

Semi-frameless usually handles lean better, because the frame member absorbs a gap the glass can't. That is the logic behind the wall profile on the pivot doors here: a metal channel takes up to three-eighths of an inch per side while the pane stays rectangular. Fully frameless glass has no such tolerance.

Custom glass is cut to your actual wall angles and typically runs three-eighths of an inch or thicker, and it is billed accordingly. Prefab is a rectangle. The middle path is a prefab door with real adjustment built in, where a telescopic track closes most of the gap a custom cut would.

A molded pan arrives pre-sloped and waterproof as one piece. A tiled floor needs a membrane, a perfect pitch, and grout you'll be sealing for years. SMC belongs to the solid-surface group: impact-resistant, sandable if it chips, and far lighter to carry than cast iron.

Cast iron lasts longest and weighs the most, turning a two-person carry into a four-person carry, and a wood subfloor may need reinforcement. SMC with a reinforced grid base resists impact and won't flex underfoot at roughly 43 to 50 pounds. For a second-floor bath, weight usually decides it.

Two people minimum, plus a stud finder. Owners report straightforward installs on the pivot doors when the instructions and the video get watched twice before anything is unpacked. Shower pans are the harder job: bedding one in thin-set mortar is where most DIY attempts go wrong, and a spongy corner two years later traces straight back to that step. If you hire out one piece, hire out the pan. The glass goes up on a level frame in an afternoon once the pan is right.

Usually the anchor, not the hinge. Screws set into tile and thinset alone work loose under a few thousand swings a year. Locate a stud or add solid blocking behind the tile before drilling. If it's already installed, back the screw out, add an appropriate anchor, and re-torque each spring.

Squeegee after every shower, which alone prevents most of it. For existing spots, a fifty-fifty white vinegar and water solution left a few minutes and rinsed will lift mineral deposits. Skip abrasive pads and scouring powders, since they strip the nano-coating and the etching returns faster than before.

Annually, at minimum. Look for the bead pulling away from tile, discoloration, or a soft spot at the base of the panel. Water reaching a subfloor through a failed bead does far more damage than the leak looks like. Strip and re-run the bead rather than caulking over the old one.

Contact customer support through the product listing. No published parts list exists, so availability is handled case by case. Common wear items, meaning magnetic strips, waterproof gaskets, and the 304 stainless drain cover, are the ones worth asking about early, since a gasket ages faster than the glass it seals.

The mortar bed. If it was mixed too dry, crumbled, or left air pockets under the shell, the pan flexes when you step on that spot. SMC with a reinforced grid resists deformation, but nothing bridges a void underneath. Pulling the pan and re-bedding it in proper thin-set mortar is the only real fix.
